Ferrari 308 GTS 1975-85

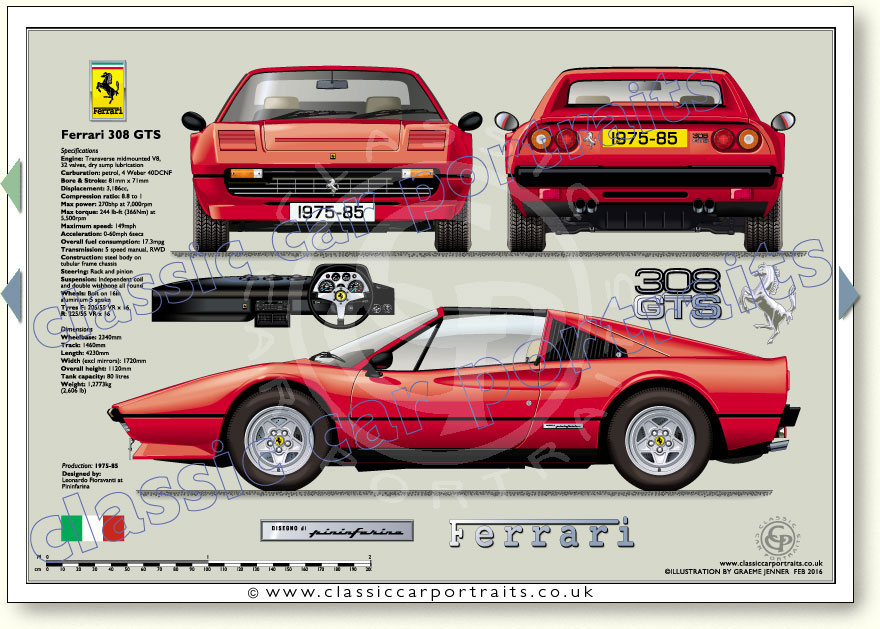

See specifications below illustration
Page 224
Ferrari 308 GTS 1975-85 Specifications
Engine Transverse midmounted V8, 32 valves, dry sump lubrication

Carburation: petrol, 4 Weber 40DCNF

Bore & Stroke: 81mm x 71mm

Displacement: 3,186cc,

Compression ratio: 8.8 to 1

Max power: 270bhp at 7,000rpm

Max torque: 244 lb-ft (366Nm) at 5,500rpm

Maximum speed: 149mph

Acceleration: 0-60mph 6secs

Overall fuel consumption: 17.3mpg

Transmission: 5 speed manual, RWD

Construction: steel body on tubular frame chassis

Steering: Rack and pinion

Suspension: Independent coil and double wishbone all round

Wheels: Bolt on 16in aluminium 5 spoke

Tyres F: 205/55 VR x 16 R: 225/55 VR x 16

Production: 1975-85
Designed by: Leonardo Fioravanti at Pininfarina

Dimensions

Wheelbase: 2340mm

Track: 1460mm

Length: 4230mm

Width (excl mirrors): 1720mm

Overall height: 1120mm

Tank capacity: 80 litres

Weight: 1,2773kg (2,606 lb)
