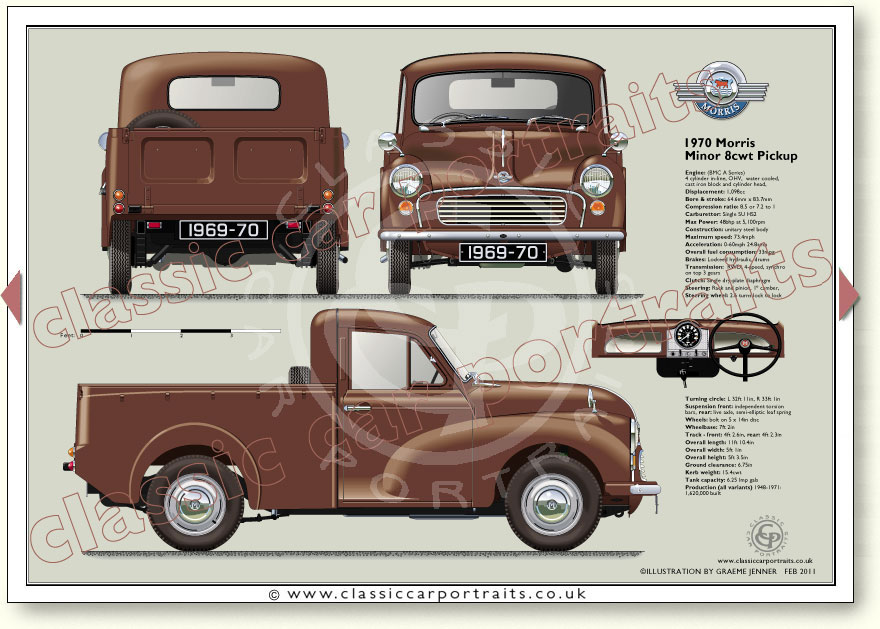

See larger specifications below illustration
Page 072D
Engine
4 Cylinder inline water cooled
Displacement: 1,098 cc
Bore: 64.6mm
Stroke: 83.7mm
Valves: Pushrod/overhead
Compression ratio: 7.5:1
Carburettors: Single SU HS2
Max Power: 48bhp at 5,100 rpm
Performance
Maximum speed: 62mph
Acceleration: 0-50mph 16.1secs
Overall fuel consumption: 35-40mpg
Construction
Unitary steel body
Brakes
Hydraulic, Front 8in drums,
Rear 7in drums
Transmission
Clutch: Single dry-plate diaphragm
Gearbox: 4-speed,
Ratios: Top 1:1, 2nd 2.172:1,
1st 3.628:1 3rd 1.412:1
Reverse 4.664:1
Differential ratio: 4.22:1
4 Cylinder inline water cooled
Displacement: 1,098 cc
Bore: 64.6mm
Stroke: 83.7mm
Valves: Pushrod/overhead
Compression ratio: 7.5:1
Carburettors: Single SU HS2
Max Power: 48bhp at 5,100 rpm
Performance
Maximum speed: 62mph
Acceleration: 0-50mph 16.1secs
Overall fuel consumption: 35-40mpg
Construction
Unitary steel body
Brakes
Hydraulic, Front 8in drums,
Rear 7in drums
Transmission
Clutch: Single dry-plate diaphragm
Gearbox: 4-speed,
Ratios: Top 1:1, 2nd 2.172:1,
1st 3.628:1 3rd 1.412:1
Reverse 4.664:1
Differential ratio: 4.22:1
Wheels & Tyres
Bolt on 5 x 14in disc
Steering
Rack and pinion
Camber: 1º
Steering wheel: 2.6 turns lock to lock
Turning circle: Left 32ft 11in,
right 33ft 1in
Suspension
Front: independent torsion bars
Rear: Live axle,
semi-elliptic leaf spring,
Telescopic dampers at rear
Bolt on 5 x 14in disc
Steering
Rack and pinion
Camber: 1º
Steering wheel: 2.6 turns lock to lock
Turning circle: Left 32ft 11in,
right 33ft 1in
Suspension
Front: independent torsion bars
Rear: Live axle,
semi-elliptic leaf spring,
Telescopic dampers at rear
Dimensions & Weight
Wheelbase: 7ft 2in
Track - front: 4ft 2.6in
Track - rear: 4ft 2.3in
Overall length: 11ft 10in
Overall width: 5ft 0.5in
Overall height: 5ft 5.75in
Ground clearance: 6.75in
Kerb weight: 14.25cwt
Tank capacity: 6.25 Imp gals
Production
All variants1948-1972: 1,619,857
Total Morris Minor & Austin LCVs (vans & pickups) 1953-72: 326,627
