Ford Anglia 105E Estate 1959-67

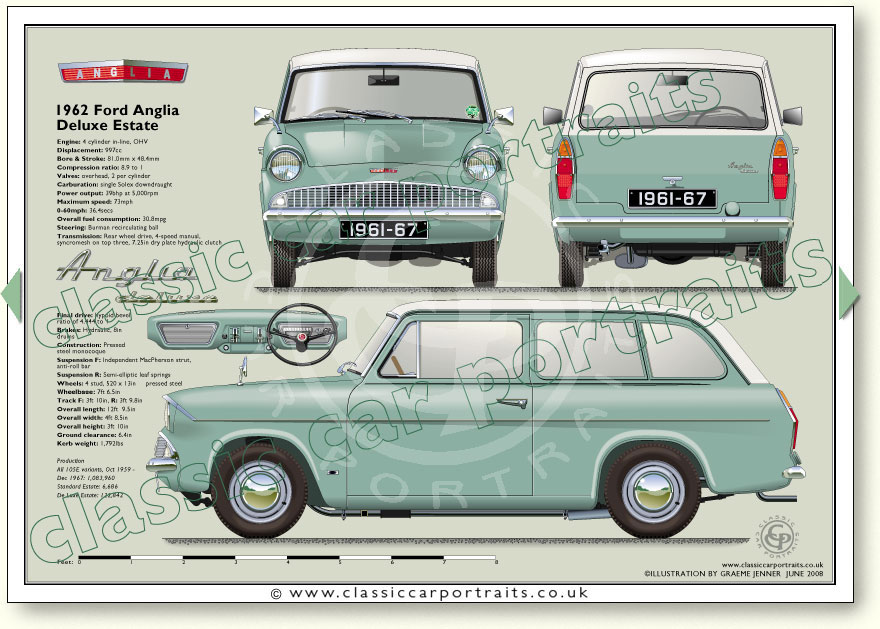

See specifications and old advertisment below illustration
Page 030A
Ford Anglia 105E Estate 1959-67 specifications
Engine
4 cylinder in-line, OHV
Displacement: 996.6cc
Bore: 81.0mm
Stroke: 48.4mm
Compression ratio: 8.9 : 1
Valves: overhead, 2 per cylinder
Carburation: single Solex downdraught
Power output: 39bhp at 5,000rpm

Performance
Maximum speed: 73mph
Acceleration: 0-60mph 36.4secs
Overall fuel
consumption: 30.8mpg

Steering
Burman recirculating ball

Transmission
4-speed manual, syncromesh on top three, 7.25in dry plate hydraulic clutch
Rear wheel drive
Final drive: hypoid bevel ratio of 4.444:1

Brakes
Hydraulic, 8in drums
76.8in lining area
76.8sq in lining area

Construction
Pressed steel monocoque

Suspension
Front: Independent MacPherson strut, anti-roll bar
Rear: Semi-elliptic leaf springs

Wheels
4 stud, 520 x 13in
pressed steel

Dimensions & Weight
Wheelbase: 7ft 6.5in
Front track: 3ft 10in
Rear track: 3ft 9.8in
Overall length: 12ft 9.5in
Overall width: 4ft 8.5in
Overall height: 4ft 8.5in
Ground clearance: 6.4in
Kerb weight: 1,792lbs

Production
All 105E variants, Oct 1959 -
Dec 1967: 1,083,960
Standard Estate: 6,686
De Luxe Estate: 122,842
