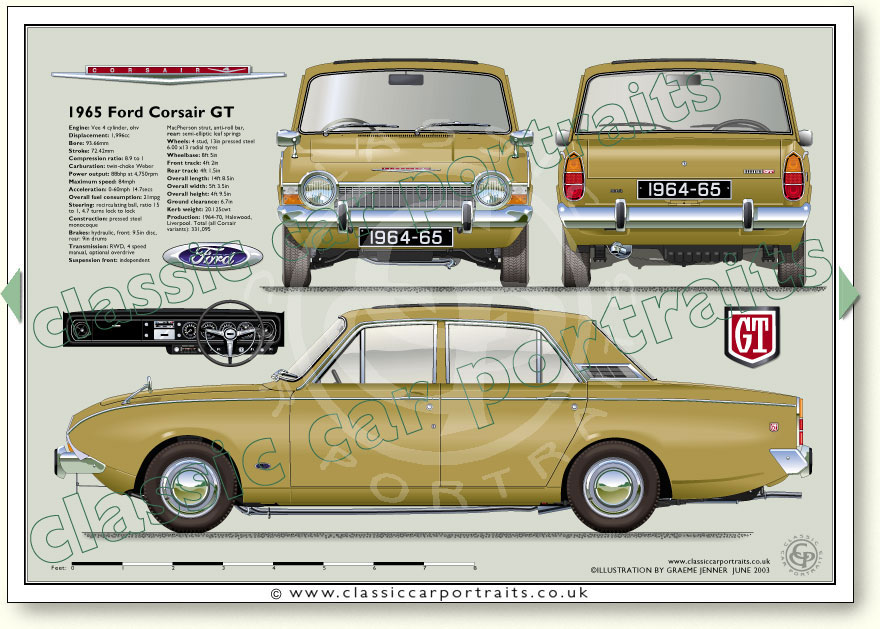

See specificationss and old advertisment below illustration.To FORDS page
Page 025B
Engine
1,996cc V4
Bore: 93.66mm
Stroke: 72.42mm
Valves: 8, pushrod overhead
Compression ratio: 8.9 to 1
Carburettor: twin choke Weber
Power output: 88 bhp at 4,750rpm
Performance
Maximum speed: approx. 84mph
Acceleration: 0-60 mph 14.7secs
Overall fuel consumption: 22.8mpg
Transmission
Rear wheel drive
Clutch: Single dry plate
Gearbox: manual 4 speed,
all synchromesh
Ratios: Top 1.0, 3rd 1.412,
2nd 2.936, 1st 3.543 to 1
reverse 3.963 to 1
Construction
Pressed steel monocoque
Steering
Recirculating ball
Ratio: 15:1
4.7 turns lock to lock
Turning circle: 36ft 6in
1,996cc V4
Bore: 93.66mm
Stroke: 72.42mm
Valves: 8, pushrod overhead
Compression ratio: 8.9 to 1
Carburettor: twin choke Weber
Power output: 88 bhp at 4,750rpm
Performance
Maximum speed: approx. 84mph
Acceleration: 0-60 mph 14.7secs
Overall fuel consumption: 22.8mpg
Transmission
Rear wheel drive
Clutch: Single dry plate
Gearbox: manual 4 speed,
all synchromesh
Ratios: Top 1.0, 3rd 1.412,
2nd 2.936, 1st 3.543 to 1
reverse 3.963 to 1
Construction
Pressed steel monocoque
Steering
Recirculating ball
Ratio: 15:1
4.7 turns lock to lock
Turning circle: 36ft 6in
Suspension
Front: Independent MacPherson strut, Rear: semi-elliptic, leaf spring,
telescopic shock absorbers
Brakes
Front: 9.5in disc
Rear: 9 x 1.75in drums
Wheels
Pressed steel 4 studs
6.00 x 13in radial tyres
Front: Independent MacPherson strut, Rear: semi-elliptic, leaf spring,
telescopic shock absorbers
Brakes
Front: 9.5in disc
Rear: 9 x 1.75in drums
Wheels
Pressed steel 4 studs
6.00 x 13in radial tyres
Dimensions & Weight
Wheelbase: 8ft 5in
Track - front: 4ft 2in
Track - rear: 4ft 1.5in
Overall length: 14ft 8.5in
Overall width: 5ft 3.5in
Overall height: 4ft 9.5in
Ground clearance: 6.7in
Kerb weight: 2,254 lbs
Capacities
Fuel tank: 10 gallons
Sump: 7.5 pints
Cooling system: 13 pints
Production
1963-70, Halewood plant, Liverpool
Total(all Corsair variants): 331,095
