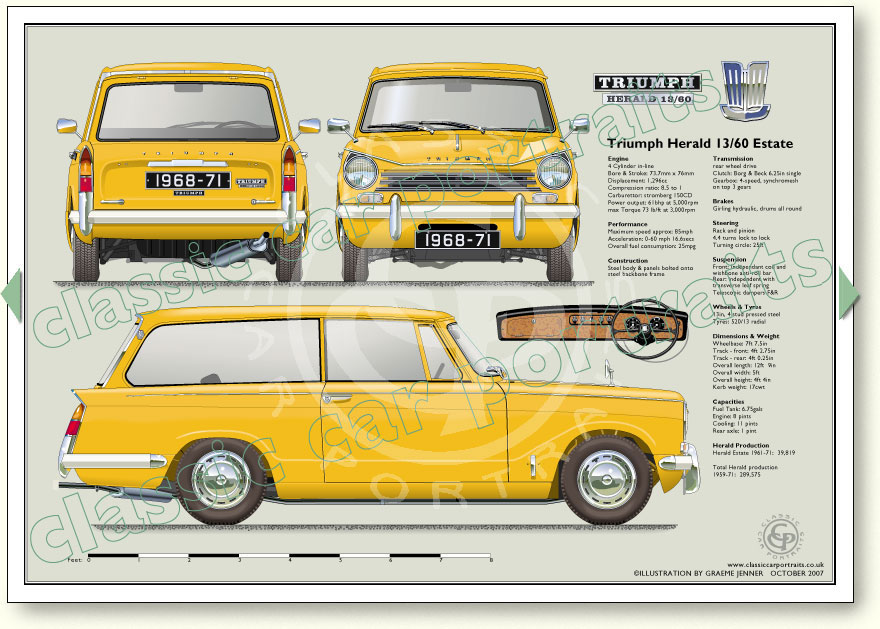

Triumph Herald Estate 13/60 1968-71
See specifications below illustration. To HERALD & VITESSE page
Page 087M
Triumph Herald Estate 13/60 1968-71 Specifications
Engine
4 Cylinder in line
Bore: 73.7mm
Stroke: 76mm
Displacement: 1,296cc
Compression ratio: 8.5/1
Carburettor: stromberg 150CD
Power output: 61bhp at 5,000rpm
max Torque 73 lb/ft at 3,000rpm

Performance
Maximum speed approx: 85mph
Acceleration: 0-60 mph 16.6secs
Overall fuel consumption: 25mpg

Construction
Steel body & panels bolted onto steel backbone frame

Transmission
Clutch: Borg & Beck 6.25in single
Gearbox: 4-speed, synchromesh on
top 3 gears
Ratios: Top 4.11, 3rd 5.74, 2nd 8.88, 1st & reverse 15.42
Differential ratio: 4.11

Brakes
Girling hydraulic drums front and rear

Steering
Rack and pinion
4.4 turns lock to lock
Turning circle: 25ft
Suspension
Front: Independant coil and wishbone anti-roll bar, rear: independent with transverse leaf spring
Telescopic dampers F&R

Wheels & Tyres
13in 4 stud pressed steel
tyres: 520 x 13

Dimensions & Weight
Wheelbase: 7ft 7.5in
Track - front: 4ft 2.75in
Track - rear: 4ft 0.25in
Overall length: 12ft 9in
Overall width: 5ft
Overall height: 4ft 4in
Dry weight: 16.56cwt

Capacities
Fuel Tank: 6.75gals
Engine: 8 pints
Cooling: 11 pints
Rear axle: 1 pint

Herald Production
Herald Estate 1961-71: 39,819
Total Herald production 1959-71: 289,575
