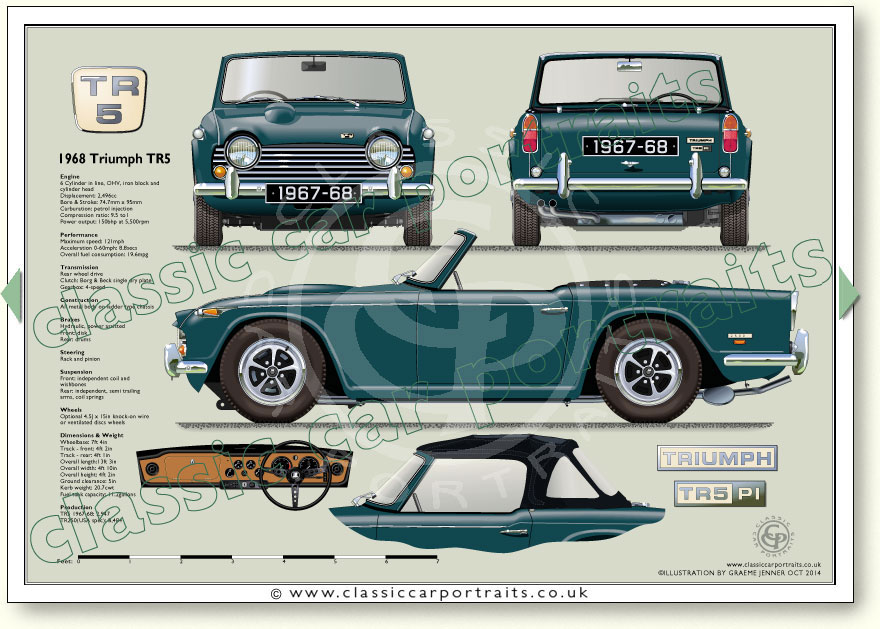

Triumph TR5 1967-68 disc wheels
See specifications below illustration. To TR2-8 page
Page 095A
Triumph TR5 1967-68 specifications
Engine
6 Cylinder in line
Displacement: 2,496cc
Bore: 74.7mm
Stroke:95mm
Valves: overhead, 12
Carburation: injection
Compression ratio: 9.5:1
Power output: 150bhp at 5500rpm

Performance
Maximum speed: 121mph
Acceleration 0-60mph: 8.8secs
Overall fuel consumption: 19.6mpg

Transmission
Rear wheel drive
Clutch: Borg & Beck single
dry plate
Gearbox: 4-speed,
Construction
All metal body on ladder type chassis

Brakes
Hydraulic, power assisted
Front: disk
Rear: drums

Steering
Rack and pinion

Suspension
Front: independant coil and wishbones
Rear: independant, semi trailing arms, coil springs
Wheels
15in 5 stud disc with Rostyle wheel trims
Rostyle trim
Wire wheels as optional

Dimensions & Weight
Wheelbase: 7ft 4in
Track - front: 4ft 2in
Track - rear: 4ft 1in
Overall length:13ft 3in
Overall width: 4ft 10in
Overall height: 4ft 2in
Ground clearance: 5in
Kerb weight: 20.7cwt
Fuel tank capacity: 11.2gallons

Production
TR5 1967-68: 2,947
TR250(USA spec): 8,484
