Ferrari Dino 246GTS 1972-74

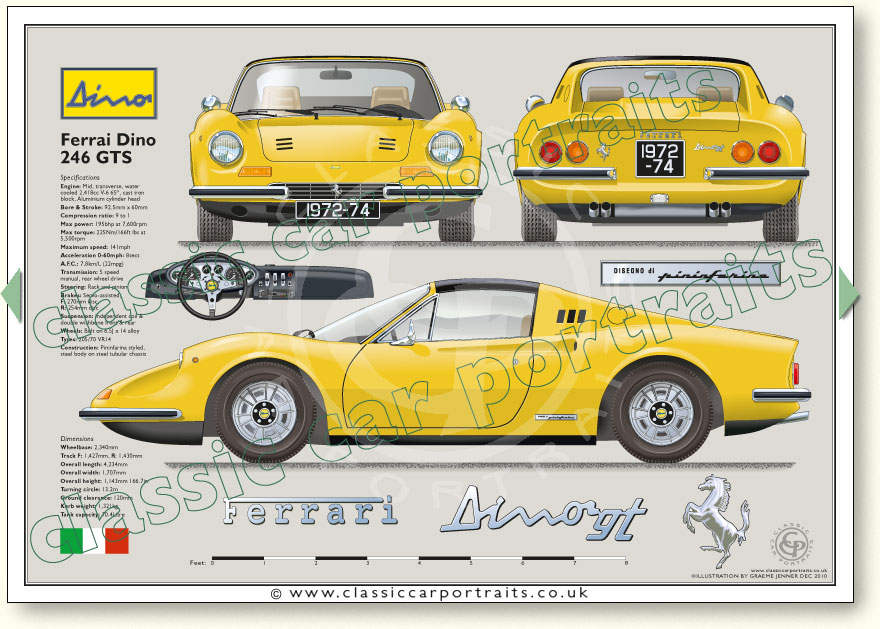

See specifications and an old advert below illustration
Page 215B
Ferrari Dino 246GTS 1972-74 specifications
Specifications
Engine: Mid, transverse, water cooled 2,418cc V-6 65º, cast iron block, Aluminium cylinder head
Bore & Stroke: 92.5mm x 60mm
Compression ratio: 9 to 1
Max power: 195bhp at 7,600rpm
Max torque: 225Nm/166ft lbs at 5,500rpmMaximum speed: 141mph
Acceleration: 0-60mph 7.9secs
A.F.C.: 7.8km/L (22mpg)
Transmission: 5 speed ?manual, rear wheel drive
Steering: Rack and pinion
Brakes: Servo-assisted, ?front: 270mm disc, rear: 254mm disc
Suspension: Independent coil & double wishbone front & rear
Wheels: Bolt on 6.5J x 14 alloy
Tyres: 205/70 VR14
Construction: Pininfarina styled, steel body
on steel tubular chassis
Dimensions
Wheelbase: 2,340mm
Track F: 1,427mm, R: 1,430mm
Overall length: 4,234mm
Overall width: 1,707mm
Overall height: 1,143mm 166.7in
Turning circle: 13.2m
Ground clearance: 120mm
Kerb weight: 1,321kg
Tank capacity: 70.4Litre 14.3 gal
