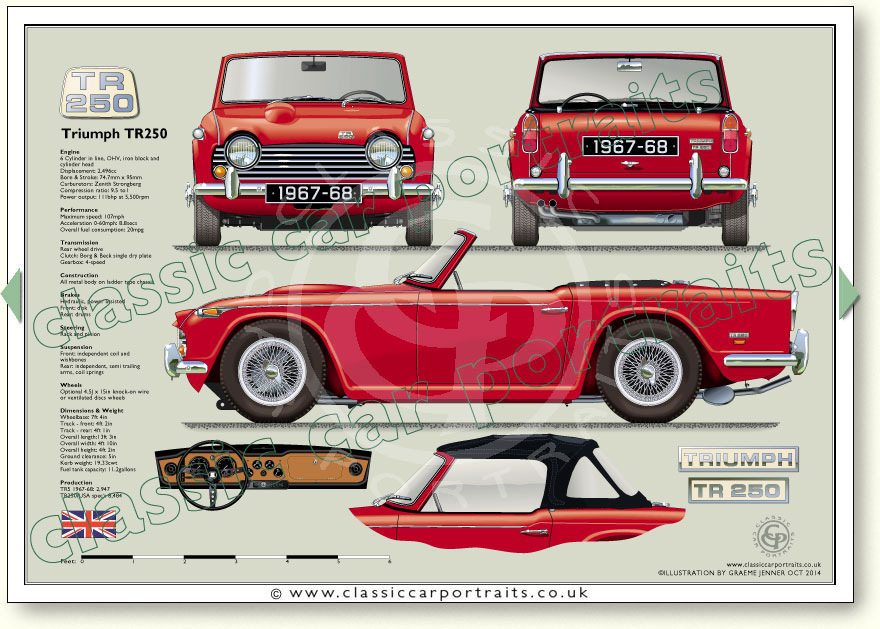

Triumph TR250 1967-68 specifications

Engine
6 Cylinder in line, OHV, iron block and cylinder head
Displacement: 2,498cc
Bore & Stroke: 74.7mm x 95mm
Carburetors: Zenith Strongberg
Compression ratio: 9.5 to1
Power output: 111bhp at 5,500rpm

Performance
Maximum speed: 107mph
Acceleration 0-60mph: 8.8secs
Overall fuel consumption: 16.6mpg US

Transmission
Rear wheel drive
Clutch: Borg & Beck single dry plate
Gearbox: 4-speed

Construction
All metal body on ladder type chassis

Brakes
Hydraulic, power assisted
Front: disk
Rear: drums

Steering
Rack and pinion

Suspension
Front: independent coil and wishbones
Rear: independent, semi trailing arms, coil springs

Wheels
Optional 4.5J x 15in knock-on wire or ventilated discs wheels

Dimensions & Weight
Wheelbase: 7ft 4in
Track - front: 4ft 2in
Track - rear: 4ft 1in
Overall length:13ft 3in
Overall width: 4ft 10in
Overall height: 4ft 2in
Ground clearance: 5in
Kerb weight: 2,350 lbs
Fuel tank capacity: 13.5 US gallon

Production
TR5 1967-68: 2,947
TR250(USA spec): 8,484
