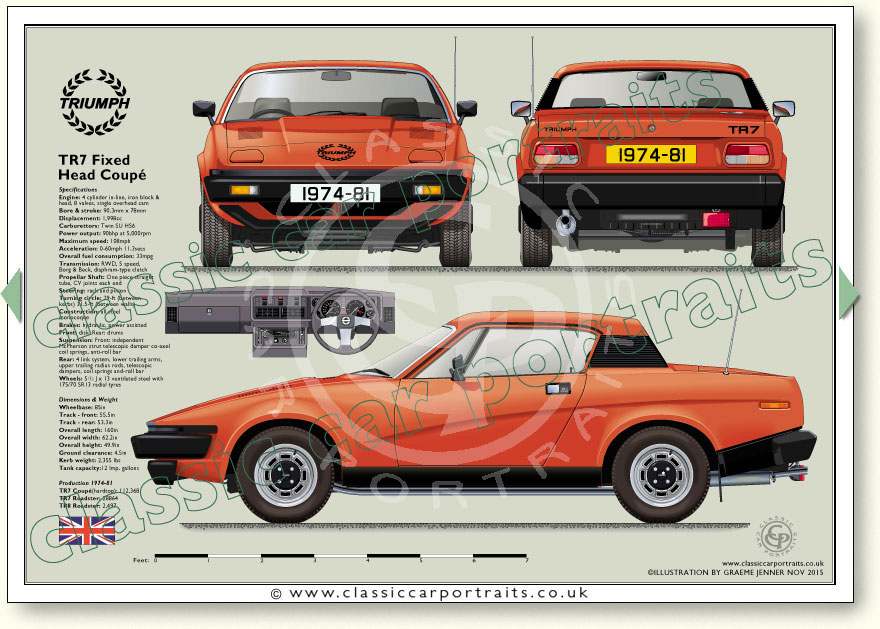

Triumph TR7 FHC 1974-81
See specifications below illustration To TR2-8 page
Page 099A
Triumph TR7 1975-81 specifications
Specifications
Engine: 4 cylinder in-line, iron block & head, 8 valves, single overhead cam
Bore & stroke: 90.3mm x 78mm
Displacement: 1,998cc
Carburettors: Twin SU HS6
Power output: 90bhp at 5,000rpm
Maximum speed: 108mph
Acceleration: 0-60mph 11.3secs
Overall fuel consumption: 33mpg
Transmission: RWD, 5 speed, Borg & Beck, diaphram-type clutch
Propellar Shaft: One piece straight tube, CV joints each end
Steering: rack and pinion
Turning circle: 29-ft (between kerbs) 31.5-ft (between walls)
Construction: all steel monocoque
Brakes: hydraulic, power assisted
Front: disk, Rear: drums
Suspension: Front: independent McPherson strut telescopic damper co-axel coil springs, anti-roll bar
Rear: 4 link system, lower trailing arms, upper trailing radius rods, telescopic dampers, coil springs and-roll bar
Wheels: 51/2 J x 13 ventilated steel with 175/70 SR13 radial tyres

Dimensions & Weight
Wheelbase: 85in
Track - front: 55.5in
Track - rear: 53.3in
Overall length: 160in
Overall width: 62.2in
Overall height: 49.9in
Ground clearance: 4.5in
Kerb weight: 2,355 lbs
Tank capacity: 12 Imp. gallons

Production 1974-81
TR7 Coupé(hardtop): 112,368
TR7 Roadster: 28864
TR8 Roadster: 2,497
