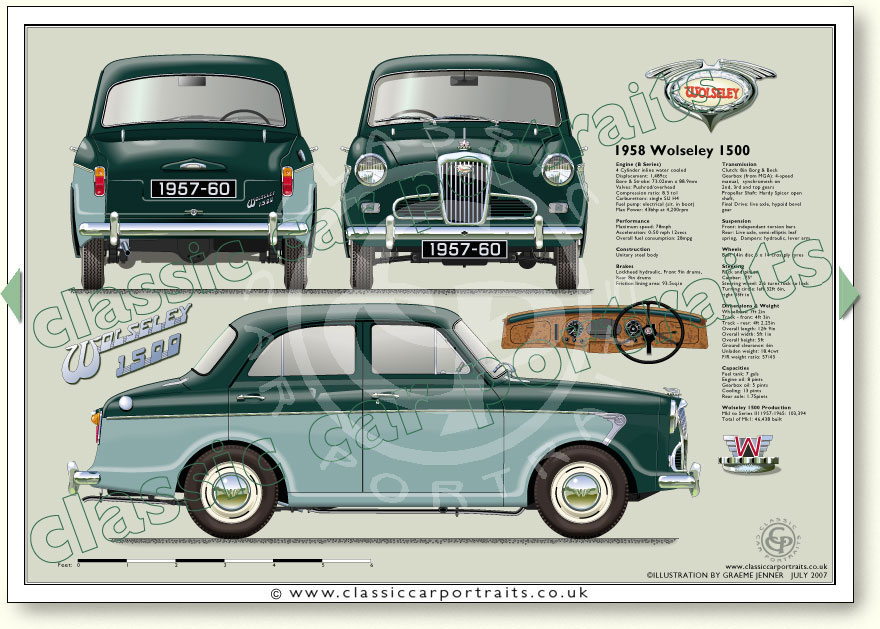

Wolseley 1500 Series I 1957-60
See specifications and an old advert below illustration
Page 116A
Wolseley 1500 Series I 1957-60 specifications
Engine
4 Cylinder inline water cooled
Displacement: 1,489 cc
Bore: 73.02mm
Stroke: 88.9mm
Valves: Pushrod/overhead
Compression ratio: 8.3:1
Carburettors: two SU H4's
Fuel pump: electrical (sit. in boot)
Max Power: 68bhp at 5,400 rpm

Performance
Maximum speed: 78 mph
Acceleration: 0-50 mph 12secs
Overall fuel consumption: 35mpg

Construction
Unitary steel body

Brakes
Girling hydraulic, Front 9in drums,
Rear 8in drums
Friction lining area: 124sq.in

Transmission
Clutch: 8in Borg & Beck
Gearbox (from MGA): 4-speed manual, synchromesh on 2nd, 3rd and top gears
Propellar Shaft: Hardy Spicer open shaft,
Final Drive: live axle, hypoid bevel gear

Wheels
Bolt 14in disc 5 x 14 crossply tyres
Suspension
Front: independant torsion bars
Rear: Live axle, semi-elliptic leaf spring, Dampers: hydraulic, lever arm

Steering
Rack and pinion
Camber: .75º
Steering wheel: 2.6 turns lock to lock
Turning circle: left 32ft 6in,
right 33ft in

Dimensions & Weight
Wheelbase: 7ft 2in
Track - front: 4ft 3in
Track - rear: 4ft 2.25in
Overall length: 12ft 9in
Overall width: 5ft 1in
Overall height: 5ft
Ground clearance: 6in
Unladen weight: 18.4cwt
F/R weight ratio: 57/43

Capacities
Fuel tank: 7 gals
Engine oil: 8 pints
Gearbox oil: 5 pints
Cooling: 13 pints
Rear axle: 1.75pints

Wolseley 1500 Production
MkI to Series III 1957-1965: 103,394
Total of MkI 1957-60: 46,438 built
