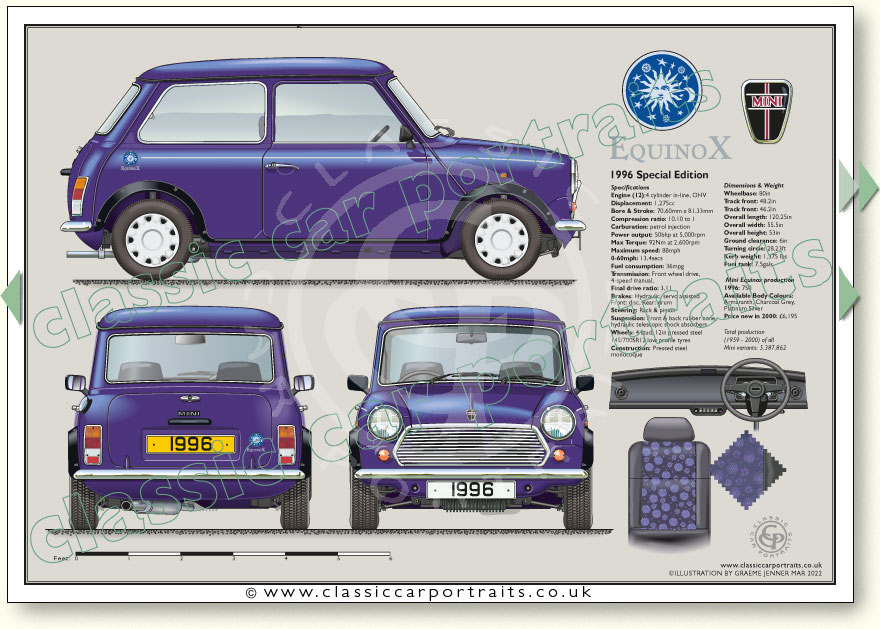

Mini EquinoX 1996
See larger specifications below illustration
Page MLE 38
Mini EquinoX 1996 specifications
Engine (12)
4 cylinder in-line, 8 overhead valves
Displacement: 1,275cc
Bore & Stroke: 70.60mm x 81.33mm
Compression ratio: 10.10 to 1
Carburation: petrol injection
Power output: 50bhp at 5,000rpm
Max Torque 92Nm at 2,600rpm

Maximum speed: 88mph
0-60mph: 13.4secs
Fuel consumption: 36mpg

Front wheel drive
4-speed manual,
Final drive ratio: 3.11

Hydraulic, servo assisted
Front: disc, Rear: drum

Rack & pinion

Front & back: rubber cone,
hydraulic telescopic shock absorbers
Rack & pinion
4 stud, 12in pressed steel
145/700SR12 low profile tyres

Pressed steel monocoque

Dimensions & Weight
Wheelbase: 80in
Track front: 48.2in
Track front: 46.2in
Overall length: 120.25in
Overall width: 55.5in
Overall height: 53in
Ground clearance: 6in
Turning circle: 28.23ft
Kerb weight: 1,375 lbs
Fuel tank: 7.5gals

Available Body Colours
Armaranth, Charcoal Grey, Platinum Silver

Mini Equinox production
1996: 750
Price new in 1996: £6,195

Total production
(1959 - 2000) of all
Mini variants: 5,387,862
