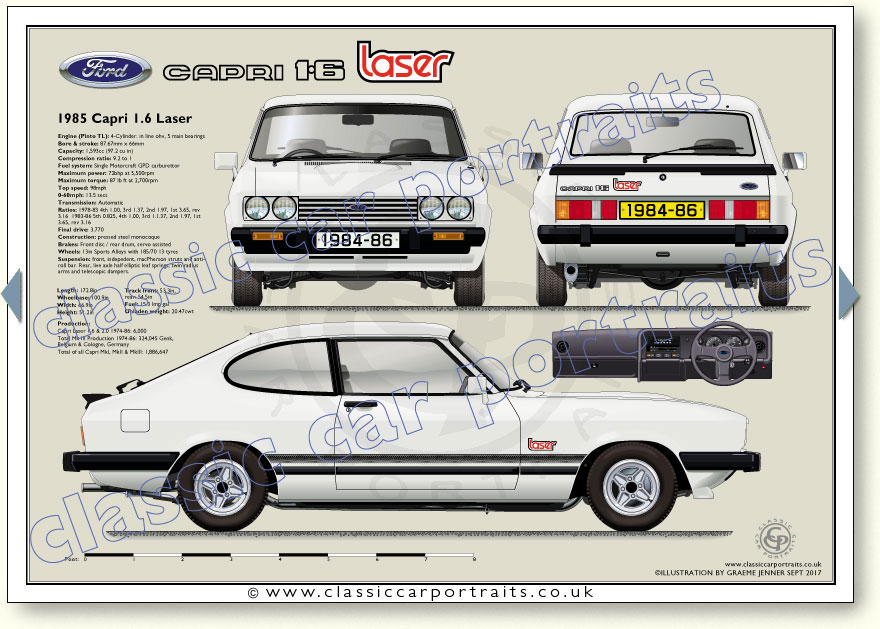

See specifications below illustration
Page 20B
Engine (Pinto TL): 4-Cylinder. in line ohv, 5 main bearings
Bore & stroke: 87.67mm x 66mm
Capacity: 1,593cc (97.2 cu in)
Compression ratio: 9.2 to 1
Fuel system: Single Motorcraft GPD carburettor
Maximum power: 72bhp at 5,500rpm
Maximum torque: 87 lb ft at 2,700rpm
Top speed: 98mph
0-60mph: 13.5 secs
Transmission: RWD, 5 speed
Ratios: 1978-83 4th 1.00, 3rd 1.37, 2nd 1.97, 1st 3.65, rev 3.16 1983-86 5th 0.825, 4th 1.00, 3rd 1.1.37, 2nd 1.97, 1st 3.65, rev 3.16
Final drive: 3.770
Construction: pressed steel monocoque
Brakes: Front disc / rear drum, servo assisted
Wheels: 13in Sports Alloys with 185/70 13 tyres
Suspension: front, indepedent, macPherson struts and anti-roll bar. Rear, live axle half elliptic leaf springs, twin radius arms and telescopic dampers.
Bore & stroke: 87.67mm x 66mm
Capacity: 1,593cc (97.2 cu in)
Compression ratio: 9.2 to 1
Fuel system: Single Motorcraft GPD carburettor
Maximum power: 72bhp at 5,500rpm
Maximum torque: 87 lb ft at 2,700rpm
Top speed: 98mph
0-60mph: 13.5 secs
Transmission: RWD, 5 speed
Ratios: 1978-83 4th 1.00, 3rd 1.37, 2nd 1.97, 1st 3.65, rev 3.16 1983-86 5th 0.825, 4th 1.00, 3rd 1.1.37, 2nd 1.97, 1st 3.65, rev 3.16
Final drive: 3.770
Construction: pressed steel monocoque
Brakes: Front disc / rear drum, servo assisted
Wheels: 13in Sports Alloys with 185/70 13 tyres
Suspension: front, indepedent, macPherson struts and anti-roll bar. Rear, live axle half elliptic leaf springs, twin radius arms and telescopic dampers.
Length: 172.8in
Wheelbase: 100.9in
Width: 66.9in
Height: 51.2in
Track front: 53.3in, rear: 54.5in
Fuel: 15.3 Imp gal
Unladen weight: 20.47cwt
Wheelbase: 100.9in
Width: 66.9in
Height: 51.2in
Track front: 53.3in, rear: 54.5in
Fuel: 15.3 Imp gal
Unladen weight: 20.47cwt
Production:
Capri Laser 1.6 & 2.0 1974-86: 6,000
Total Mk III Production 1974-86: 324,045 Genk, Belgium & Cologne, Germany
Total of all Capri MkI, MkII & MkIII: 1,886,647
