Mazda MX-5 NB Calfornia 1.6L 2000

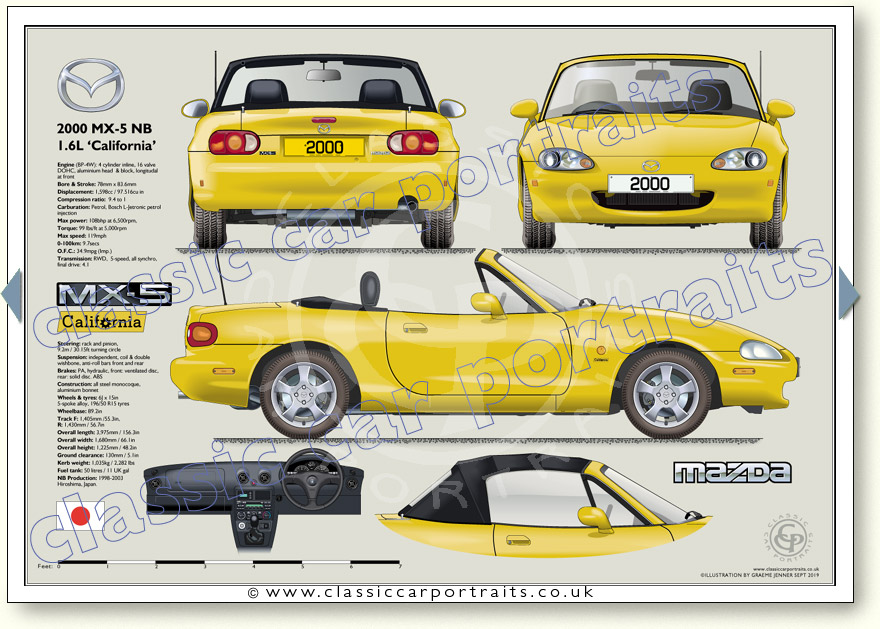

See specifications below illustration
Page 225C
Mazda MX-5 NB Calfornia 1.6L 2000 specifications
Engine: (B6ZE): 4 cylinder inline, 16 valve DOHC, aluminium head & block, longitudal at front

Bore & Stroke: 78mm x 83.6mm

Displacement: 1,598cc / 97.516cu in

Compression ratio: 9.4 to 1

Carburation: Petrol, Bosch L-Jetronic petrol injection

Max power: 108bhp at 6,500rpm,

Torque: 99 lbs/ft at 5,000rpm

Max speed: 119mph

0-100km: 9.7secs

O.F.C.: 34.9mpg (Imp.)

Transmission: RWD, 5-speed, all synchro, final drive: 4.1

Steering: rack and pinion, 9.2m / 30.15ft turning circle

Suspension: independent, coil & double wishbone, anti-roll bars front and rear

Brakes: PA, hydraulic, front: ventilated disc, rear: solid disc. ABS

Construction: all steel monocoque, aluminium bonnet

Wheels & tyres: 6J x 15in 5-spoke alloy, 196/50 R15 tyres


Wheelbase: 89.2in

Track F: 1,405mm /55.3in, R: 1,430mm / 56.7in

Overall length: 3,975mm / 156.3in

Overall width: 1,680mm / 66.1in

Overall height: 1,225mm / 48.2in

Ground clearance: 130mm / 5.1in

Kerb weight: 1,035kg / 2,282 lbs

Fuel tank: 50 litres / 11 UK gal

NB Production: 1998-2003, Hiroshima, Japan.
