See copiable specifications below illustration.

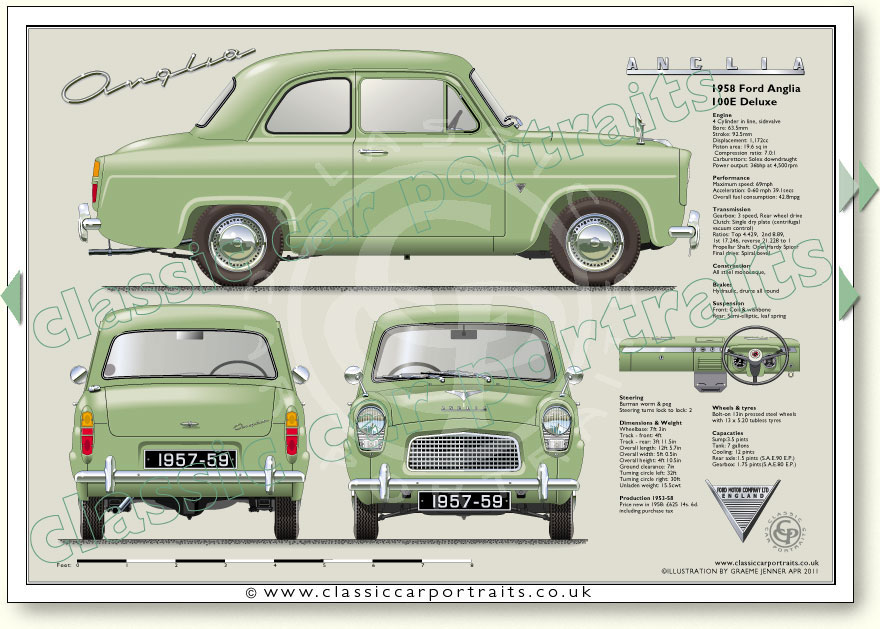

Page 021D To: Anglia/Prefect/Popular 100E/Prefect 107E 1953-62 page
Engine
4 Cylinder in line
Bore: 63.5mm
Stroke: 92.5mm
Displacement: 1,172cc
Piston area: 19.6 sq in
Valves: 8, side
Compression ratio: 7.0:1
Carburettors: Solex downdraught
Power output: 36bhp at 4,500rpm
Performance
Maximum speed: 69mph
Acceleration: 0-60 mph 39.1secs
Overall fuel consumption: 42.8mpg
Steering
Burman worm & peg
Steering turns lock to lock: 2
4 Cylinder in line
Bore: 63.5mm
Stroke: 92.5mm
Displacement: 1,172cc
Piston area: 19.6 sq in
Valves: 8, side
Compression ratio: 7.0:1
Carburettors: Solex downdraught
Power output: 36bhp at 4,500rpm
Performance
Maximum speed: 69mph
Acceleration: 0-60 mph 39.1secs
Overall fuel consumption: 42.8mpg
Steering
Burman worm & peg
Steering turns lock to lock: 2
Transmission
Gearbox: 3 speed, Rear wheel drive
Clutch: Single dry plate (centrifugal vacuum control)
Ratios: Top 4.429, 2nd 8.89,
1st 17.246, reverse 21.228 to 1
Propellar Shaft: OpenHardy Spicer
Final drive: Spiral bevel
Chassis
Construction: All steel monocoque,
Brakes
Hydraulic, drums all round
Suspension
Front: Coil & wishbone
Rear: Semi-elliptic, leaf spring
Wheels & tyres
Bolt-on 13in pressed steel wheels
with 13 x 5.20 tubless tyres
Gearbox: 3 speed, Rear wheel drive
Clutch: Single dry plate (centrifugal vacuum control)
Ratios: Top 4.429, 2nd 8.89,
1st 17.246, reverse 21.228 to 1
Propellar Shaft: OpenHardy Spicer
Final drive: Spiral bevel
Chassis
Construction: All steel monocoque,
Brakes
Hydraulic, drums all round
Suspension
Front: Coil & wishbone
Rear: Semi-elliptic, leaf spring
Wheels & tyres
Bolt-on 13in pressed steel wheels
with 13 x 5.20 tubless tyres
Capacaties
Sump:3.5 pints
Tank: 7 gallons
Cooling: 12 pints
Rear axle:1.5 pints (S.A.E.90 E.P.)
Gearbox: 1.75 pints(S.A.E.80 E.P.)
Dimensions & Weight
Wheelbase: 7ft 3in
Track - front: 4ft
Track - rear: 3ft 11.5in
Overall length: 12ft 5.7in
Overall width: 5ft 0.5in
Overall height: 4ft 10.5in
Ground clearance: 7in
Turning circle left: 32ft
Turning circle right: 30ft
Unladen weight: 15.5cwt
Price new in 1958: £625 14s. 6d. including purchase tax
Sump:3.5 pints
Tank: 7 gallons
Cooling: 12 pints
Rear axle:1.5 pints (S.A.E.90 E.P.)
Gearbox: 1.75 pints(S.A.E.80 E.P.)
Dimensions & Weight
Wheelbase: 7ft 3in
Track - front: 4ft
Track - rear: 3ft 11.5in
Overall length: 12ft 5.7in
Overall width: 5ft 0.5in
Overall height: 4ft 10.5in
Ground clearance: 7in
Turning circle left: 32ft
Turning circle right: 30ft
Unladen weight: 15.5cwt
Price new in 1958: £625 14s. 6d. including purchase tax
