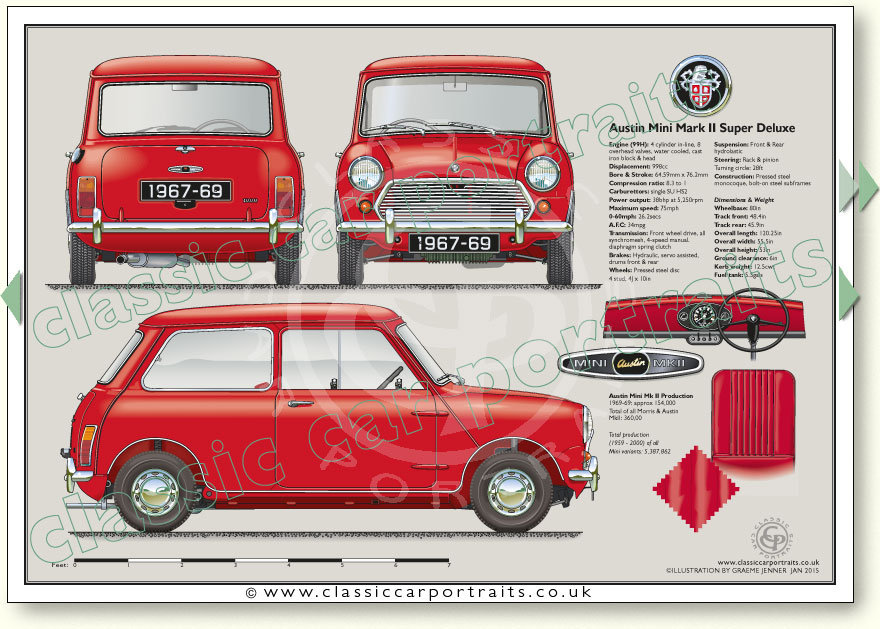

Austin Mini 1000 MkII 1967-69
See larger specifications below illustration
Page M18
Austin Mini MkII 1967-69 Super Deluxe 1000cc specifications
Engine (9fA/9FD)
4 cylinder in-line,
8 overhead valves
Displacement: 998cc
Bore: 64.59mm
Stroke: 76.2mm
Compression ratio: 8.3 to 1
Valves: 2 per cylinder
Carburettor: SU HS2
Power output: 38bhp at 5,250rpm

Performance
Maximum speed: 75mph
0-60mph: 26.2secs
Ave. fuel consump: 34mpg

Transmission
4-speed manual,
synchromesh on top 3 gears
(all synchro after 1968)
Front wheel drive

Brakes
Hydraulic, drums front & rear
Steering
Rack & pinion
Turning circle: 28ft
Suspension
Front & Rear: Interlinked hydrolastic

Wheels
Pressed steel 4 stud,
10 x 3.5J

Construction
Pressed steel monocoque

Dimensions & Weight
Wheelbase: 80in
Track front: 48.2in
Track rear: 46.2in
Overall length: 120.25in
Overall width: 55.5in
Overall height: 53in
Ground clearance: 6in
Kerb weight: 12.5cwt
Fuel tank: 5.5gals

Austin Mini Mk 2 Production
1967-1969: 154,000 approx.

Total production of all
Austin & Morris Mk 2 Minis
360,000
Total production
(1959 - 2000) of all
Mini variants: 5,387,862
