Ford Capri RS 3100 1974

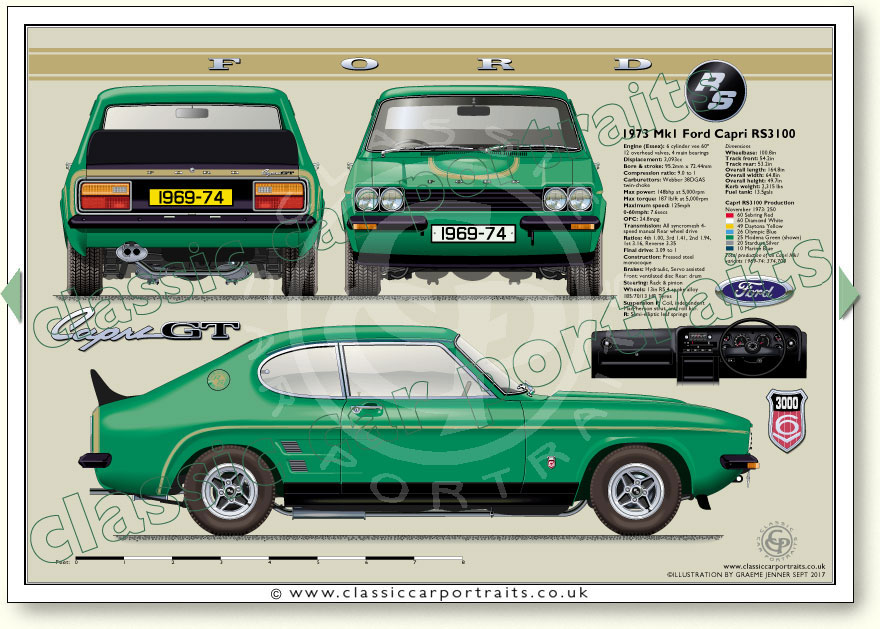

See specifications below illustration, to FORDS page
Page 028B
Ford Capri RS 3100 1974 Specifications
6 cylinder vee 60º
12 overhead valves
Displacement: 3,092cc
Bore: 95.20mm
Stroke: 72.44mm
Compression ratio: 9.0 to 1
Main bearings: 4
Carburettors: webber 38 EGAS twin-choke
Max power: 148bhp at 3,000rpm
Max torque: 187 lb/ft at 3,000rpm

Maximum speed: 125mph
0-60mph: 7.3secs
Overall fuel consumption:
24.8 mpg
All syncromesh 4-speed manual, rear wheel drive
ratios: 4th 1.00, 3rd 1.41, 2nd 1.94, 1st 3.16,
Reverse 3.35
Final drive: 3.092

Pressed steel monocoque

Hyraulic, Servo ass.
Front: ventilated disc
Rear: drum

Rack & pinion

Front: Coil, independent MacPherson strut,
anti roll bar
Rear: Semi-elliptic leaf springs
6J bolt-on, 4 stud 13in cast,
4 spoke alloy
85/70 HR 13 tyres

Dimensions & Weight
Wheelbase: 100.8in
Track front: 54.2in
Track rear: 53.2in
Overall length: 164.8in
Overall width: 64.8in
Overall height: 49.7in
Kerb weight: 2,315 lbs
Fuel tank: 13.5gals

Capri RS3100 Production
Nov 1973 to Jan 1974: 250
(25 in modena green)
Total production of all
Capri Mk1 variants
1969-74: 374,700
