Hillman Minx V 1963-65
Other cars using Raymond Loewy designed 'Audax' body, drawn shown on this website:
Hillman Husky, Sunbeam Rapier, Singer Gazelle convertible

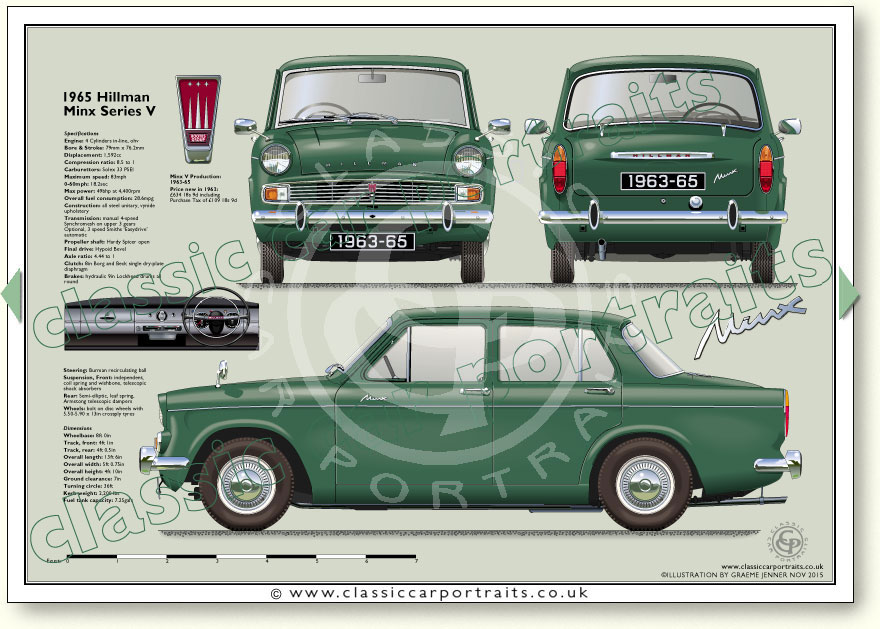

See specifications below illustration Page 035B
Whilst the trademark owner has consented to the reproduction of its logo and emblems it has no connection with or responsibility for this drawing or for the technical data and gives no warranty as to its accuracy.

Hillman Minx V 1963-65 specifications

Engine: 4 Cylinders in-line, ohv
Bore & Stroke: 79mm x 76.2mm
Displacement: 1,592cc
Compression ratio: 8.5 to 1
Carburettors: Solex 33 PSEI
Maximum speed: 83mph
0-60mph: 18.2sec
Max power: 49bhp at 4,400rpm
Overall fuel consumption: 28.6mpg
Construction: all steel unitary, vynide upholstery
Transmission: manual 4-speed Synchromesh on upper 3 gears Optional, 3 speed Smiths ‘Easydrive’ automatic
Propeller shaft: Hardy Spicer open
Final drive: Hypoid Bevel
Axle ratio: 4.44 to 1
Clutch: 8in Borg and Beck single dry-plate diaphragm
Brakes: hydraulic 9in Lockheed drums all round
Suspension, Front: independent, coil spring and wishbone, telescopic shock absorbers
Rear: Semi-elliptic, leaf spring, Armstong telescopic dampers
Wheels: bolt on disc wheels with 5.50-5.90 x 13in crossply tyres

Wheelbase: 8ft 0in
Track, front: 4ft 1in
Track, rear: 4ft 0.5in
Overall length: 13ft 6in
Overall width: 5ft 0.75in
Overall height: 4ft 10in
Ground clearance: 7in
Turning circle: 36ft
Kerb weight: 2,263 lbs
Fuel tank capacity: 7.25gals

Minx V Production: 1963-65
Price new in 1963: £634 18s 9d including Purchase Tax of £109 18s 9d
