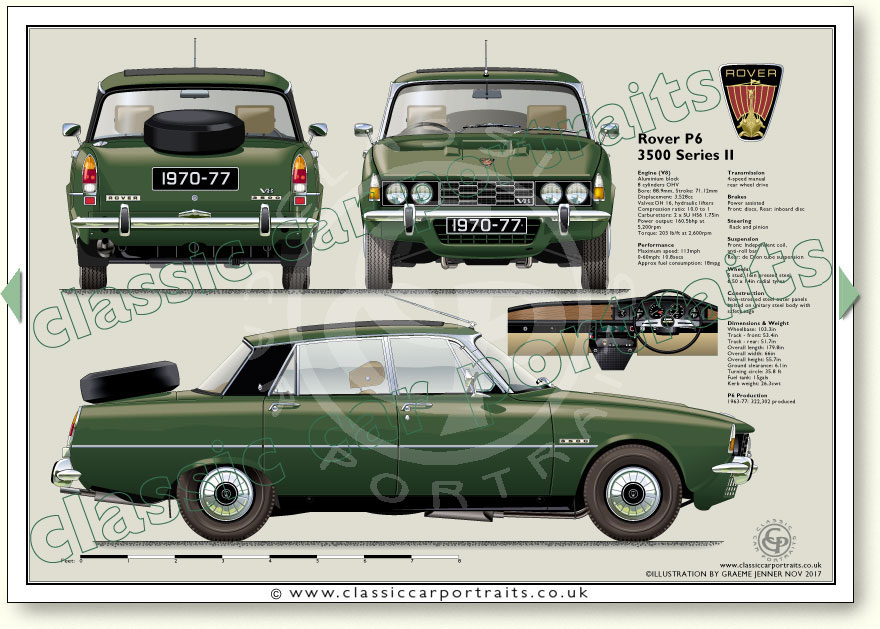

Rover P6 3500 (Series II) 1970-77 See specifications below illustration
Please note: spare wheel on boot and sunshine roof can be deleted if your car is without these.
Page 160D
Rover P6 3500 (Series II) 1970-77 specifications
Engine (V8)
Aluminium block
8 cylinders OHV
Bore: 88.9mm, Stroke: 71.12mm
Displacement: 3,528cc
Valves:OH 16, hydraulic lifters
Compression ratio: 10.0 to 1
Carburettors: Two SU HS6 1.75in
Power output: 160.5bhp at 5,200rpm
Torque: 203 lb/ft at 2,600rpm

Maximum speed: 113mph
0-60mph: 10.8secs
Approx fuel consumption: 18mpg

4-speed manual
rear wheel drive

Power assisted
Front: discs, Rear: inboard disc

Rack and pinion
Front: Independent coil,
anti-roll bar
Rear: de Dion tube suspension

5 stud, 16in pressed steel
6.50 x 14in radial tyres

Non-stressed steel outer panels bolted on unitary steel body with safety cage

Dimensions & Weight
Wheelbase: 103.3in
Track - front: 53.4in
Track - rear: 51.7in
Overall length: 179.8in
Overall width: 66in
Overall height: 55.7in
Ground clearance: 6.1in
Turning circle: 35.8 ft
Fuel tank: 15gals
Kerb weight: 26.3cwt

P6 Production
1963-77: 322,302 produced
