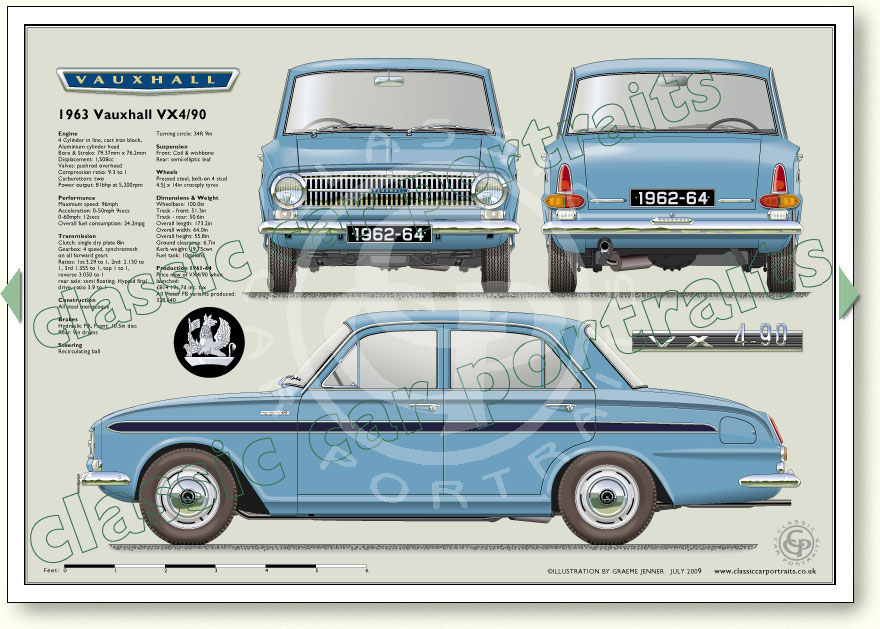

Vauxhall VX4/90 1962-64
See specifications below illustration
Page 136
This profile would really benefit from from a drawing or photograph of the dashboard, so please enclose a photograph of the dashboard when you order a portrait.
Vauxhall VX4/90 1962-64 specifications
4 Cylinder in line,
cast iron block,
Aluminium cylinder head
Bore: 79.37mm
Stroke: 76.2mm
Displacement: 1,508cc
Valves: pushrod overhead
Compression ratio: 9.3 to 1
Carburettors: two
Power output: 81bhp at 5,200rpm

Maximum speed: 96mph
Acceleration: 0-50 mph 9secs
0-60 mph 12secs
Overall fuel consumption: 24.2mpg

Clutch: single dry plate 8in
Gearbox: 4 speed, synchromesh
on all forward gears
Ratios: 1st:3.29 to 1, 2nd: 2.130 to 1, 3rd 1.355 to 1, top 1 to 1, reverse 3.050 to 1
rear axle: semi floating. Hypoid final drive, ratio 3.9 to 1

All steel monocoque

Hydraulic PA, Front: 10.5in disc Rear: 9in drums

Recirculating ball
Turning circle: 34ft 9in

Front: Coil & wishbone
Rear: semi-elliptic leaf

Pressed steel, bolt-on 4 stud
4.5J x 14in crossply tyres

Dimensions & Weight
Wheelbase: 100.0in
Track - front: 51.3in
Track - rear: 50.6in
Overall length: 173.2in
Overall width: 64.0in
Overall height: 55.8in
Ground clearance: 6.7in
Kerb weight: 19.75cwt
Fuel tank: 10gallons

Production 1961-64
Price new of VX4/90 when launched:
£814 19s 7d inc. tax
All Victor FB variants produced: 328,640
