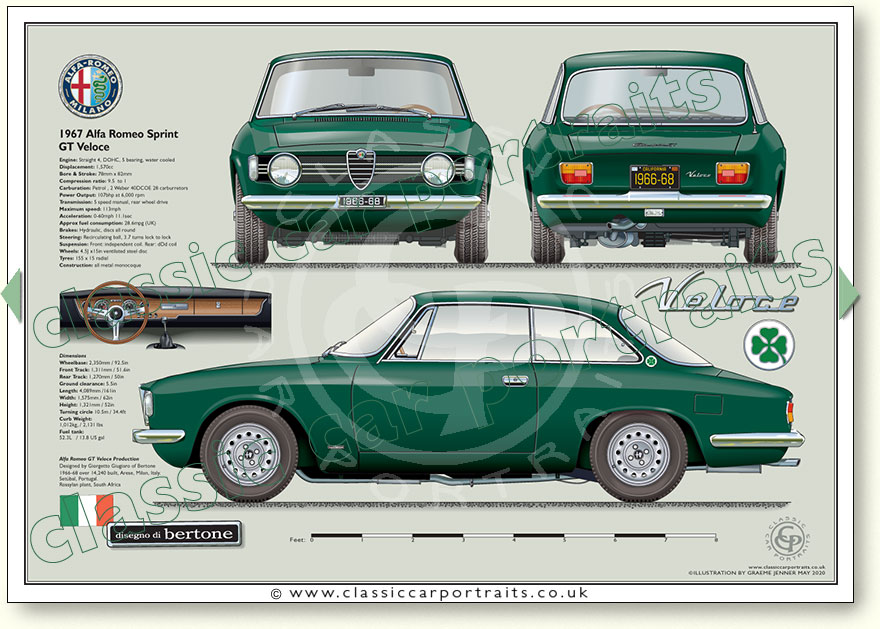

See specifications below illustration
Page 245a
Engine: Straight 4, DOHC, 5 bearing,
water cooled
Displacement: 1,290cc
Bore & Stroke: 74mm, x 75mm
Compression ratio: 9 / 1
Carburation: Petrol , 2 Weber 40DCOE 28 carburretors
Power Output: 101.5bhp at 6,000 rpm
Transmission: 5 speed manual, rear wheel drive
Maximum speed: 106mph
Acceleration: 0-60mph 12.5sec
Approx fuel consumption: 28.6mpg (UK)
Brakes: Hydraulic, discs all round
Steering: Recirculating ball, 3.7 turns lock to lock
Suspension Front: independent coil.
Rear: dDd coil
Wheels: 4.5J x15in ventilated steel disc
Tyres: 155 x 15 radial
Construction: all steel monocoque
water cooled
Displacement: 1,290cc
Bore & Stroke: 74mm, x 75mm
Compression ratio: 9 / 1
Carburation: Petrol , 2 Weber 40DCOE 28 carburretors
Power Output: 101.5bhp at 6,000 rpm
Transmission: 5 speed manual, rear wheel drive
Maximum speed: 106mph
Acceleration: 0-60mph 12.5sec
Approx fuel consumption: 28.6mpg (UK)
Brakes: Hydraulic, discs all round
Steering: Recirculating ball, 3.7 turns lock to lock
Suspension Front: independent coil.
Rear: dDd coil
Wheels: 4.5J x15in ventilated steel disc
Tyres: 155 x 15 radial
Construction: all steel monocoque
Dimensions
Wheelbase: 2,350mm / 92.5in
Front Track: 1,324mm / 52.1in
Rear Track: 1,274mm / 50.2in
Ground clearance: 5.5in
Length: 4,089mm /161in
Width: 1,575mm / 62in
Height: 1,321mm / 52in
Turning circle: 10.5m / 34.4ft
Curb Weight: 930kg, / 2,050.3 lbs
Fuel tank: 52.3L / 11.5 UK gal / 13.8 US gal
Wheelbase: 2,350mm / 92.5in
Front Track: 1,324mm / 52.1in
Rear Track: 1,274mm / 50.2in
Ground clearance: 5.5in
Length: 4,089mm /161in
Width: 1,575mm / 62in
Height: 1,321mm / 52in
Turning circle: 10.5m / 34.4ft
Curb Weight: 930kg, / 2,050.3 lbs
Fuel tank: 52.3L / 11.5 UK gal / 13.8 US gal
