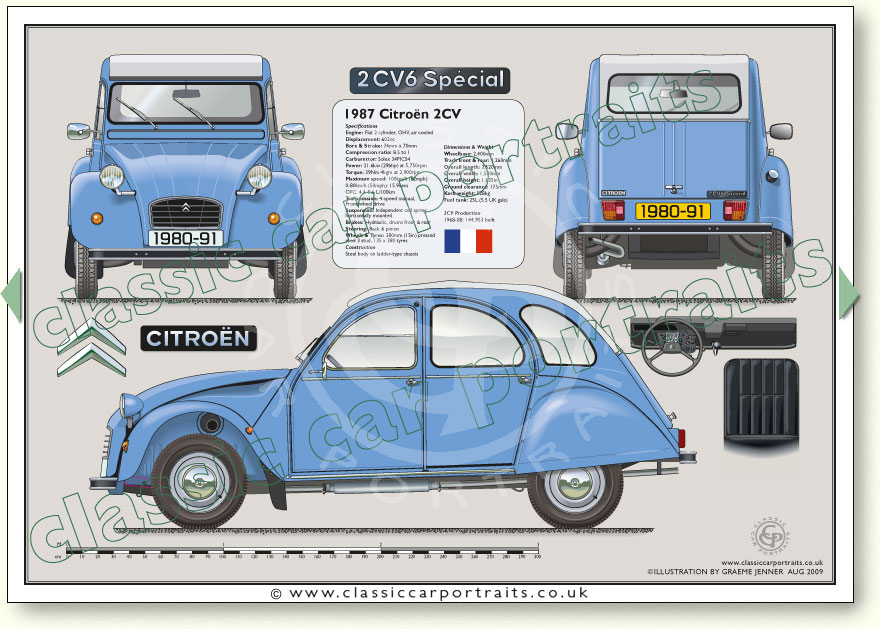

See specifications below illustration
Page 274
Engine: Flat 2 cylinder, OHV, air cooled
Displacement: 602cc
Bore & Stroke: 74mm x 70mm
Compression ratio: 8.5 to 1
Carburettor: Solex 34PICS4
Power: 21.6kw (29bhp) at 5,750rpm
Torque: 39Nm 4kgm at 2,900rpm
Maximum speed: 100km/h (62mph)
0-80km/h (50mph): 15.9secs
OFC: 4.4-5.6 L/100km
Transmission: 4-speed manual, Front wheel drive
Suspension: Independent coil spring horizontally mounted.
Brakes: Hydraulic, drums front & rear
Steering: Rack & pinion
Wheels & Tyres: 380mm (15in) pressed steel 3 stud, 135 x 380 tyres
Construction
Steel body on ladder-type chassis
Displacement: 602cc
Bore & Stroke: 74mm x 70mm
Compression ratio: 8.5 to 1
Carburettor: Solex 34PICS4
Power: 21.6kw (29bhp) at 5,750rpm
Torque: 39Nm 4kgm at 2,900rpm
Maximum speed: 100km/h (62mph)
0-80km/h (50mph): 15.9secs
OFC: 4.4-5.6 L/100km
Transmission: 4-speed manual, Front wheel drive
Suspension: Independent coil spring horizontally mounted.
Brakes: Hydraulic, drums front & rear
Steering: Rack & pinion
Wheels & Tyres: 380mm (15in) pressed steel 3 stud, 135 x 380 tyres
Construction
Steel body on ladder-type chassis
Dimensions & Weight
Wheelbase: 2,400mm
Track front & rear: 1,260mm
Overall length: 3,520mm
Overall width: 1,530mm
Overall height: 1,635in
Ground clearance: 175mm
Kerb weight: 528kg
Fuel tank: 25L (5.5 UK gals)
2CV Production
1968-88: 144,953 built
