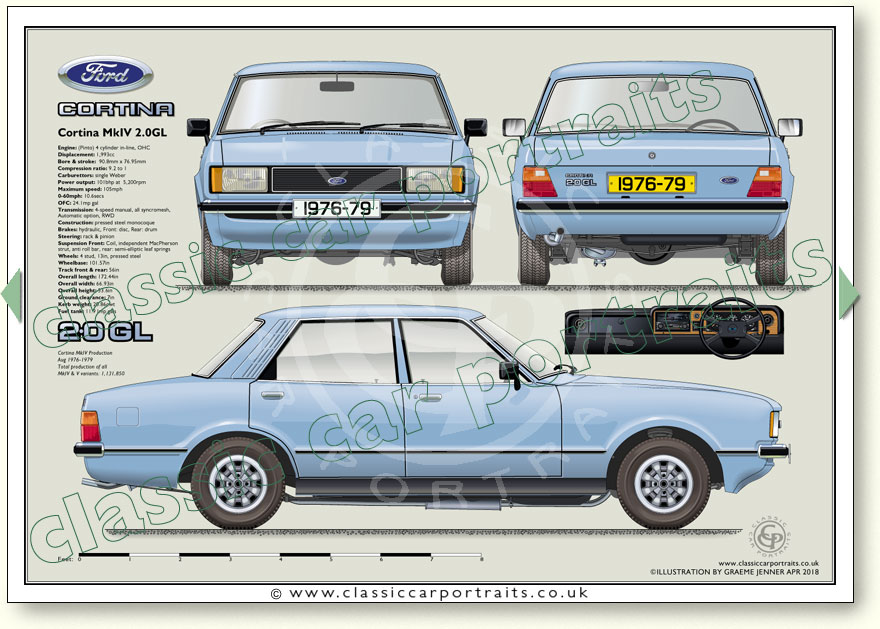

See specifications below illustration
Page 246
Engine: (Pinto) 4 cylinder in-line, OHC
Displacement: 1,993cc
Bore & stroke: 90.8mm x 76.95mm
Compression ratio: 9.2 to 1
Carburettors: single Weber
Power output: 101bhp at 5,200rpm
Maximum speed: 105mph
0-60mph: 10.6secs
OFC: 24.1mp gal
Transmission: 4-speed manual, all syncromesh, Automatic option, RWD
Construction: pressed steel monocoque
Brakes: hydraulic, Front: disc, Rear: drum
Steering: rack & pinion
Suspension Front: Coil, independent MacPherson strut, anti roll bar, rear: semi-elliptic leaf springs
Wheels: 4 stud, 13in, pressed steell
Displacement: 1,993cc
Bore & stroke: 90.8mm x 76.95mm
Compression ratio: 9.2 to 1
Carburettors: single Weber
Power output: 101bhp at 5,200rpm
Maximum speed: 105mph
0-60mph: 10.6secs
OFC: 24.1mp gal
Transmission: 4-speed manual, all syncromesh, Automatic option, RWD
Construction: pressed steel monocoque
Brakes: hydraulic, Front: disc, Rear: drum
Steering: rack & pinion
Suspension Front: Coil, independent MacPherson strut, anti roll bar, rear: semi-elliptic leaf springs
Wheels: 4 stud, 13in, pressed steell
Dimensions
Wheelbase: 101.57in
Track front & rear: 56in
Overall length: 172.44in
Overall width: 66.93in
Overall height: 53.7in
Ground clearance: 7in
Kerb weight: 20.86cwt
Fuel tank: 11.9 Imp gals
Cortina MkIV Production
Aug 1976-1979
Total production of all
MkIV & V variants: 1,131,850
Wheelbase: 101.57in
Track front & rear: 56in
Overall length: 172.44in
Overall width: 66.93in
Overall height: 53.7in
Ground clearance: 7in
Kerb weight: 20.86cwt
Fuel tank: 11.9 Imp gals
Cortina MkIV Production
Aug 1976-1979
Total production of all
MkIV & V variants: 1,131,850
