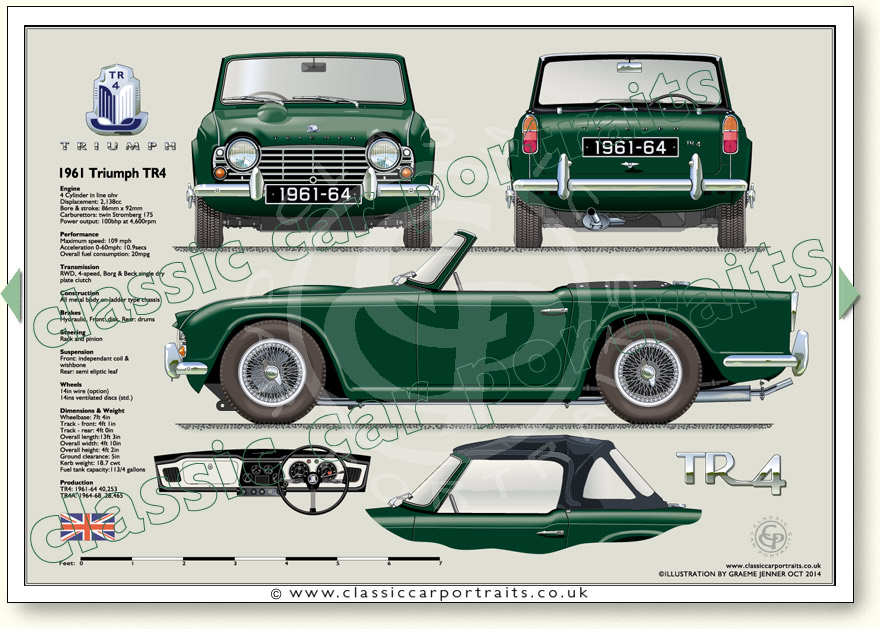

See specifications and an old advert below illustration. To TR2-8 page
Page 80
Engine
4 Cylinder in line ohv
Displacement: 2,138cc
Bore & stroke: 86mm x 92mm Carburettors: twin Stromberg 175
Power output: 100bhp at 4,600rpm
Performance
Maximum speed: 109 mph
Acceleration 0-60mph: 10.9secs
Overall fuel consumption: 20mpg
Transmission
RWD, 4-speed, Borg & Beck single dry plate clutch
Construction
All metal body on ladder type chassis
Brakes
Hydraulic ?Front: disk
Rear: drums
Steering
Rack and pinion
4 Cylinder in line ohv
Displacement: 2,138cc
Bore & stroke: 86mm x 92mm Carburettors: twin Stromberg 175
Power output: 100bhp at 4,600rpm
Performance
Maximum speed: 109 mph
Acceleration 0-60mph: 10.9secs
Overall fuel consumption: 20mpg
Transmission
RWD, 4-speed, Borg & Beck single dry plate clutch
Construction
All metal body on ladder type chassis
Brakes
Hydraulic ?Front: disk
Rear: drums
Steering
Rack and pinion
Suspension
Front: independant coil & wishbone
Rear: semi eliptic leaf
Wheels
14ins ventilated discs
Wire wheels as optional
Dimensions & Weight
Wheelbase: 7ft 4in
Track - front: 4ft 1in
Track - rear: 4ft 0in
Overall length:13ft 3in
Overall width: 4ft 10in
Overall height: 4ft 2in
Ground clearance: 5in
Kerb weight: 18.7 cwt
Fuel tank capacity:113/4 gallons
Front: independant coil & wishbone
Rear: semi eliptic leaf
Wheels
14ins ventilated discs
Wire wheels as optional
Dimensions & Weight
Wheelbase: 7ft 4in
Track - front: 4ft 1in
Track - rear: 4ft 0in
Overall length:13ft 3in
Overall width: 4ft 10in
Overall height: 4ft 2in
Ground clearance: 5in
Kerb weight: 18.7 cwt
Fuel tank capacity:113/4 gallons
Production
TR4: 1961-64 40,253
TR4A: 1964-68 28,465
