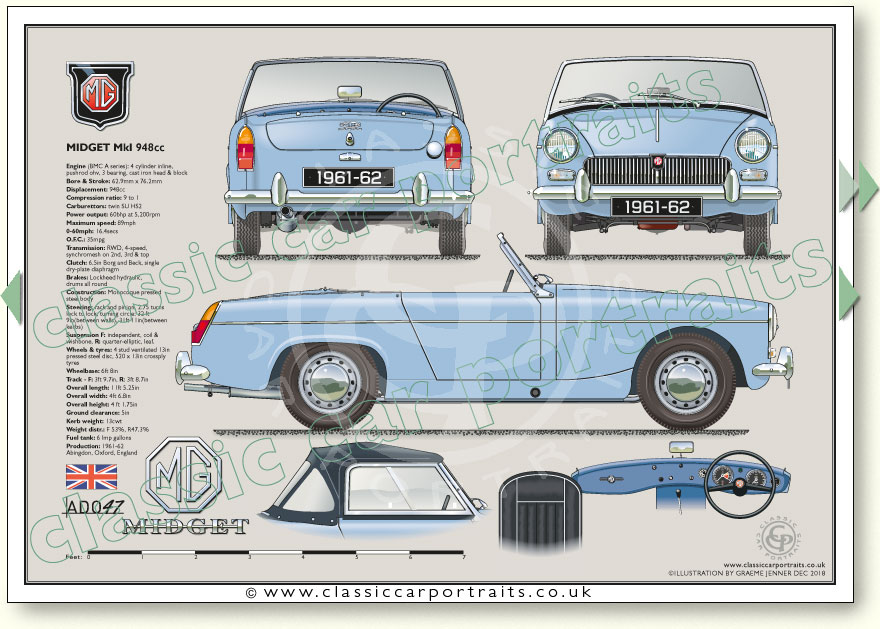

See specifications below illustration.
Page 062 A
Engine
Cylinders: 4
Crankshafft Bearings: 3
Bore: 62.9mm
Stroke: 76.2mm
Displacement: 948cc
Valves: 8 pushrod/overhead
Cylinder Head: cast iron
Compression ratio: 9.0 to 1
Carburettors: Twin SU HS2
Power output: 43bhp at 5,200rpm
Performance
Maximum speed: 84mph
Acceleration: 0-60 mph 19.8secs
Overall fuel consumption: 33.2mpg
Cylinders: 4
Crankshafft Bearings: 3
Bore: 62.9mm
Stroke: 76.2mm
Displacement: 948cc
Valves: 8 pushrod/overhead
Cylinder Head: cast iron
Compression ratio: 9.0 to 1
Carburettors: Twin SU HS2
Power output: 43bhp at 5,200rpm
Performance
Maximum speed: 84mph
Acceleration: 0-60 mph 19.8secs
Overall fuel consumption: 33.2mpg
Transmission
Clutch: 8 in Borg and Beck,
single dry-plate diaphragm
Gearbox: 4-speed, synchromesh on 2nd, 3rd & top only
Brakes
Lockheed hydraulic, drums all round
Steering
Rack and pinion,
2.75 turns lock to lock
Turning circle: 32 ft 9in(between walls)
31ft 11in(between kerbs)
Suspension
Front: Independent, coil spring, wishbone Suspension
Rear: quarter elliptic, leaf spring
Wheels & tyres
4 stud ventilated 13in pressed steel disc, 520 x 13in crossply tyres
Rack and pinion,
2.75 turns lock to lock
Turning circle: 32 ft 9in(between walls)
31ft 11in(between kerbs)
Suspension
Front: Independent, coil spring, wishbone Suspension
Rear: quarter elliptic, leaf spring
Wheels & tyres
4 stud ventilated 13in pressed steel disc, 520 x 13in crossply tyres
Construction
Monocoque pressed steel body
Dimensions & Weight
Wheelbase: 6ft 8in
Track - front: 3ft 10.5in
Track - rear: 3ft 10in
Overall length: 11ft 5.5in
Overall width: 4ft 6.8in
Overall height: 4 ft 1.75in
Ground clearance: 5in
Kerb weight: 14.5 cwt
Weight distribution: F 53%, R47.3%
Fuel tank: 6 Imp gallons
