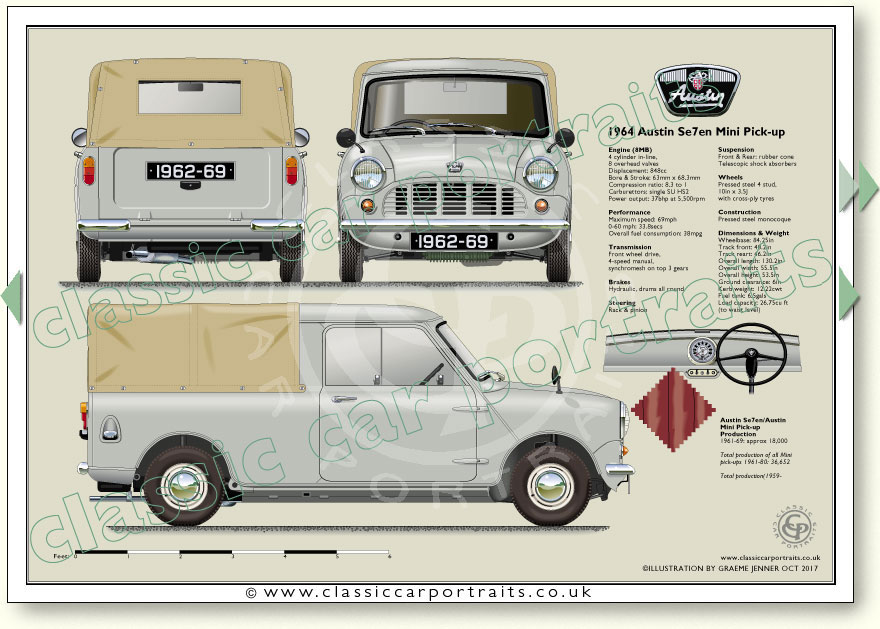

Austin Mini Pick-up with tilt
See specifications below illustration
Page 23C
Mini Pick-up with tilt 1961-69 specifications
998cc option available from 1967
850cc Engine (8MB)
4 cylinder in-line,
8 overhead valves
Displacement: 848cc
Bore: 63mm, Stroke: 68.3mm
Compression ratio: 8.3 to 1
Valves: 2 per cylinder
Carburettors: single SU HS2
Power output: 37 bhp at 5,500rpm

Performance
Maximum speed: 69mph
0-60 mph: 33.8secs
Overall fuel consumption: 38mpg

Transmission
Front wheel drive,
4-speed manual,
synchromesh on top 3 gears

Brakes
Hydraulic, Front: drum Rear: drum

Steering
Rack & pinion

Suspension
Front & Rear: rubber cone
Telescopic shock absorbers
Wheels
Pressed steel 4 stud,
10in x 3.5J
with cross-ply tyres

Construction
Pressed steel monocoque

Dimensions & Weight
Wheelbase: 84.25in
Track front: 48.2in
Track reart: 46.2in
Overall length: 130.2in
Overall width: 55.5in
Overall height: 53.5in
Ground clearance: 6in
Kerb weight: 12.22cwt
Fuel tank: 6.5gals
Load capacity: 26.75cu ft
(to waist level)

Austin Se7en/Austin Mini Pick-up Production
1961-69: approx 58,179

Production of all Mini Pick-ups1961-82
Austin Mini Pick-up:18,075
Morris Mini Pick-up: 12,577
Mini Pick-up 850: 12,130
Mini Pick-up 100: 15,397
Total: 58,179

Total production
(1959 - 2000) of all Mini variants: 5,387,862
