Austin 10/4 Saloon 1932-34
See specifications and rally photo below illustration
Page 006
Austin 10/4 Saloon 1932-34 specifications
4 Cylinder in line
Bore: 63.5mm
Stroke: 89.0mm
Displacement: 1,125cc
Valves: 8, side
Compression ratio: 6.50/1
Carburation: single Zenith 24UH
Spark plugs: KLG 777

Maximum speed: 54mph
Acceleration: 0-50 mph 40secs
Overall fuel consumption: 34mpg

Rear wheel drive
Clutch: single, dry plate
Gearbox: 4-speed,
Synchromesh on top, 2nd & 3rd
Ratios: ratios are 5.25, 8.04, 12.78
and 21.1 to 1.
Propeller Shaft: torque tube
Rear axle: three quarter floating spiral bevel

Pressed steal body on crossed braced chassis
Mechanical, 7in drums

Worm and sector

Semi elliptic leaf front and rear
Luvax hydraulic shock absorbers

Wheels & Tyres
22in Magna detachable wire
400 x 22 crossply

Dimensions & Weight
Wheelbase: 7ft 9in
Track - front: 3ft 9in
Track - rear: 3ft 9.2in
Overall length: 11ft 7in
Overall width: 4ft 5.7in
Overall height: 5ft 4in
Ground clearance: 6.8in
Turning circle: 37ft
Kerb weight: 17cwt
Tank capacity: 6 gallons

1934-35 53,695 produced

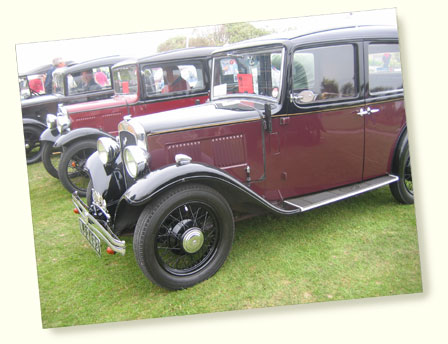

Vintage Car Show, Amberley Working Museum , April 1st 2007
