See specifications below illustration
Page 222

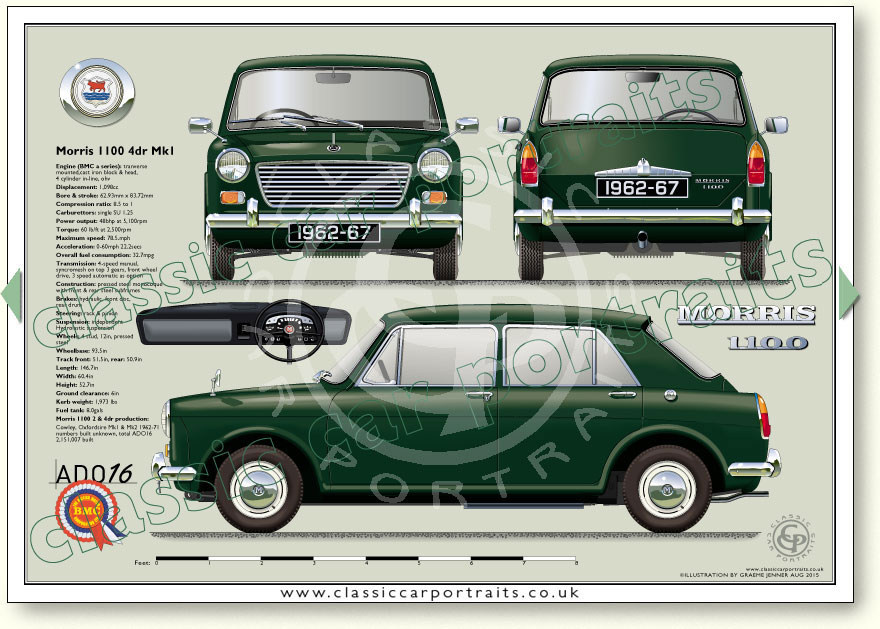

| BMC ADO16 drawings
Austin 1100 mk1 1963-67 Austin 1100 countryman Austin 1300GT 1969-74 MG 1100 2 door 1962-67 Vanden Plas Princess Wolseley 1100 1964-68 Morris 1100 1962-67, 1300, Morris 1100 Traveller Riley Kestral, 1100, Riley 1300 |
Engine
(tranverse mounted)
4 cylinder in-line,
8 overhead valves
Displacement: 1,098cc
Bore: 62.93mm
Stroke: 83.72mm
Compression ratio: 8.5 : 1
Valves: 2 per cylinder
Carburettors: single SU 1.25
Power output: 48bhp at 5,100rpm
Performance
Maximum speed: 80mph
Acceleration: 0-60mph 24secs
Overall fuel consumption: 35mpg
(tranverse mounted)
4 cylinder in-line,
8 overhead valves
Displacement: 1,098cc
Bore: 62.93mm
Stroke: 83.72mm
Compression ratio: 8.5 : 1
Valves: 2 per cylinder
Carburettors: single SU 1.25
Power output: 48bhp at 5,100rpm
Performance
Maximum speed: 80mph
Acceleration: 0-60mph 24secs
Overall fuel consumption: 35mpg
Transmission
4-speed manual,
syncromesh on top 3 gears
Front wheel drive
Construction
Pressed steel monocoque
with front & rear steel subframes
Brakes
Hyraulic, Front: disc Rear: drum
Steering
Rack & pinion
Suspension
Independent/Hydrolastic suspension
4-speed manual,
syncromesh on top 3 gears
Front wheel drive
Construction
Pressed steel monocoque
with front & rear steel subframes
Brakes
Hyraulic, Front: disc Rear: drum
Steering
Rack & pinion
Suspension
Independent/Hydrolastic suspension
Wheels
4 stud, 12in, pressed steel
Dimensions & Weight
Wheelbase: 93.5in
Track front: 51.5in
Track front: 50.9in
Length: 146.7in
Width: 64in
Height: 52.7in
Ground clearance: 6in
Kerb weight: 1,900 lbs
Fuel tank: 8gals
1100 & 1300 Production
1962 -1974
Total production:1,119,800 (including 1300))
4 stud, 12in, pressed steel
Dimensions & Weight
Wheelbase: 93.5in
Track front: 51.5in
Track front: 50.9in
Length: 146.7in
Width: 64in
Height: 52.7in
Ground clearance: 6in
Kerb weight: 1,900 lbs
Fuel tank: 8gals
1100 & 1300 Production
1962 -1974
Total production:1,119,800 (including 1300))
